DATING & IDENTIFYING

JONES FAMILY or HAND CS

CYLINDER SHUTTLE

or

VIBRATING SHUTTLE



PART 1

from 1893 to 1941

This page is far from complete but I hope it can help you a bit and not confuse you !




          000...........................JAN.   1893



*********************  Type 1  **********************

1893 - 1893

HAND CYLINDER SHUTTLE
HAND CYLINDER SHUTTLE

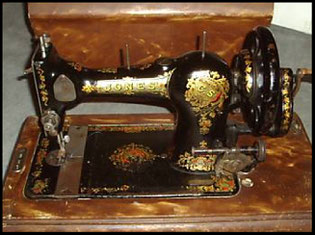

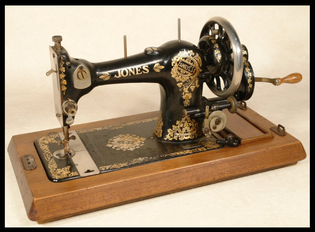

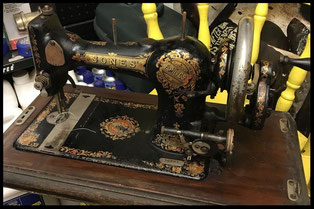

Jones FCS Type 1 .......................................... # 144
Jones FCS Type 1 .......................................... # 144

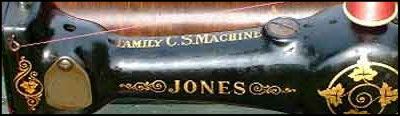

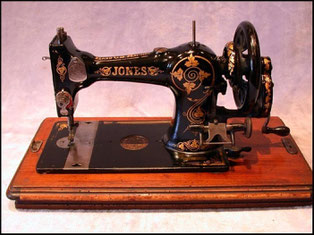

 JONES

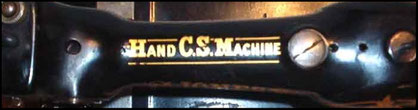

HAND C.S. MACHINE

 (FIRST VIBRATING SHUTTLE)



Type 1



# 144 (1893)

Badge on the flat bed



First recorded # 144 (1893)

Last recorded # 3.878 (1894 c.)

Jones FCS Type 1 .......................................... # 701
Jones FCS Type 1 .......................................... # 701



JONES

HAND C.S. MACHINE



Type 1



# 701 (1893)

 Badge on the flat bed



First recorded # 144 (1893)

Last recorded # 3.878 (1894 c.)

Jones FCS Type 1 ....................................... # 1.177
Jones FCS Type 1 ....................................... # 1.177

 JONES

HAND C.S. MACHINE



Type 1



# 1.177 (1893)

 Badge on the flat bed



First recorded # 144 (1893)

Last recorded # 3.878 (1894 c.)

Jones FCS Type 1 ....................................... # 3.878
Jones FCS Type 1 ....................................... # 3.878

 JONES

HAND C.S. MACHINE



Type 1



# 3.878 (1894)

 Badge on the flat bed



First recorded # 144 (1893)

Last recorded # 3.878 (1894 c.)





*********************  Type 2 **********************

1893 - 1894 c.

Jones FCS Type 2 .... www.needlebar.org .......... # 595
Jones FCS Type 2 .... www.needlebar.org .......... # 595



 JONES

HAND C.S. MACHINE



Type 2



# 595 (1893)

Plain flat bed or Painted roses ?



First recorded # 595 (1893)

Last recorded # 6.818 (1894 c.)

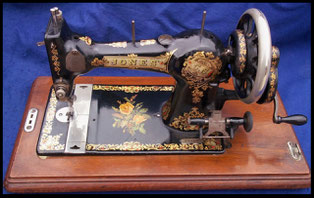

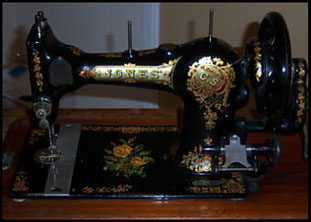

Jones FCS Type 2 .... www.needlebar.org ....... # 2.415
Jones FCS Type 2 .... www.needlebar.org ....... # 2.415



JONES

 FAMILY C.S. MACHINE



Type 2



# 2.415 (1893)

 Painted roses on the flat bed



First recorded # 595 (1893)

Last recorded # 6.818 (1894 c.)

Jones FCS Type 2 ..... www.sewmuse.co.uk ... # 5.155
Jones FCS Type 2 ..... www.sewmuse.co.uk ... # 5.155



JONES

 FAMILY C.S. MACHINE



Type 2



# 5.155 (1894 c.)

 Painted roses on the flat bed



First recorded # 595 (1893)

Last recorded # 6.818 (1894 c.)

Jones FCS Type 2 ....................................... # 6.818
Jones FCS Type 2 ....................................... # 6.818





JONES

 FAMILY C.S. MACHINE



Type 2



# 6.818 (1894 c.)

 Painted roses on the flat bed



First recorded # 595 (1893)

Last recorded # 6.818 (1894 c.)





*********************  Type 3 ***********************

1894 c - 1895 c.

Type 1 & 2
Type 1 & 2
Type 3
Type 3
Type 4
Type 4

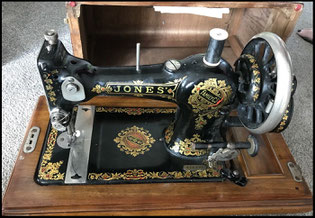

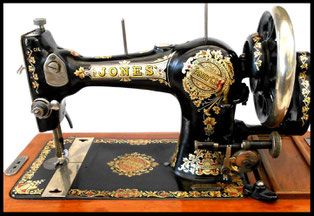

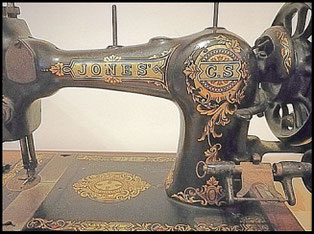

Jones FCS Type 3 ...................................... # 13.297
Jones FCS Type 3 ...................................... # 13.297

 JONES

CS



Type 3



# 13.297  (1895 c.)

 New decals on the arm and pillar



First recorded # 10.000 (1894 c.)

Last recorded # 15.879 (1895 c.)

Jones FCS Type 3 ...................................... #  14.738
Jones FCS Type 3 ...................................... # 14.738

 JONES

CS



 Type 3



# 14.738  (1895 c.)

 New decals on the arm and pillar



First recorded # 10.000 (1894 c.)

Last recorded # 15.879 (1895 c.)

Jones FCS Type 3 ...................................... # 15.585
Jones FCS Type 3 ...................................... # 15.585



JONES

CS



 Type 3



# 15.585  (1895 c.)

 New decals on the arm and pillar



First recorded # 10.000 (1894 c.)

Last recorded # 15.879 (1895 c.)

Jones FCS Type 3 ...................................... # 15.879
Jones FCS Type 3 ...................................... # 15.879



JONES

CS



 Type 3



# 15.879  (1895 c.)

 New decals on the arm and pillar



First recorded # 10.000 (1894 c.)

Last recorded # 15.879 (1895 c.)





*****************  Type 3 var.1  ****************

1895 c

Jones FCS Type 3 var. 1 ............................. # 10.521
Jones FCS Type 3 var. 1 ............................. # 10.521



JONES

CS



 Type 3 var. 1



# 10.521  (1895 c.)

 New decals on the arm and pillar



First recorded # 10.521 (1895 c.)

Last recorded # 12.070 (1895 c.)

Jones FCS Type 3 var. 1 ............................. # 12.070
Jones FCS Type 3 var. 1 ............................. # 12.070



JONES

CS



 Type 3 var. 1



# 12.070  (1895 c.)

 New decals on the arm and pillar



First recorded # 10.521 (1895 c.)

Last recorded # 12.070 (1895 c.)





*********************  Type 4  **********************

1895 c. - 1899 c.

Type 3
Type 3
Type 4
Type 4
Type 5
Type 5

Jones FCS Type 4 ..................................... # 16.780
Jones FCS Type 4 ..................................... # 16.780



 JONES

FAMILY CS



Type 4



# 16.780  (1895 c.)

 New decal on the pillar



First recorded # 16.780 (1895 c.)

Last recorded # 64.466 (1899 c.)

Jones FCS Type 4 ...................................... # 20.155
Jones FCS Type 4 ...................................... # 20.155



 JONES

FAMILY CS



Type 4



# 20.155  (1896 c.)

 New decal on the pillar



First recorded # 16.780 (1895 c.)

Last recorded # 64.466 (1899 c.)

Jones FCS Type 4 ...................................... # 21.732
Jones FCS Type 4 ...................................... # 21.732

 JONES

FAMILY CS



 Type 4



# 21.732  (1896 c.)

 New decal on the pillar



First recorded # 16.780 (1895 c.)

Last recorded # 64.466 (1899 c.)

Jones FCS Type 4 ...................................... # 33.119
Jones FCS Type 4 ...................................... # 33.119

 JONES

FAMILY CS



 Type 4



# 33.119  (1897 c.)

 New decal on the pillar



First recorded # 16.780 (1895 c.)

Last recorded # 64.466 (1899 c.)





*********************  Type 5  **********************

1899 c. - 1922 c.

Type 4
Type 4
Type 5
Type 5
Type 6
Type 6

Type 5 var. 1 ........................................... # 66.091
Type 5 var. 1 ........................................... # 66.091





JONES



Type 5 var. 1



# 66.091  (1899 c.)

 new decal on the flat bed and on the arm and a new arm front cap.



First recorded # 66.091 (1899 c.)

Last recorded # 294.600 (1922 c.)

Type 5 var. 2 ............................................ # 71.631
Type 5 var. 2 ............................................ # 71.631



 JONES



Type 5 var.2



# 71.631  (1900 c.)

 new decal on the flat bed and on the arm and a new arm front cap.



First recorded # 66.091 (1899 c.)

Last recorded # 294.600 (1922 c.)



Jones FCS Type 6 ........ # 80.913
Jones FCS Type 6 ........ # 80.913



"Singer style" Bobbin Winder



The side picture shows one of the early serial number with the new bobbin winder

Type 5 var. 3 ............................................ # 88.946
Type 5 var. 3 ............................................ # 88.946



JONES



Type 5 var. 3



# 88.946  (1901 c.)

 plain flat bed



First recorded # 66.091 (1899 c.)

Last recorded # 294.600 (1922 c.)

Type 5 var. 4 ............................................ # 91.265
Type 5 var. 4 ............................................ # 91.265





JONES

UNNAMED



Type 5 var. 4



# 91.265  (1901 c.)

 Old Bobbin Winder style

Type 5 var. 5 .......................................... # 122.705
Type 5 var. 5 .......................................... # 122.705







JONES



Type 5 var. 5



# 122.705  (1903 c.)

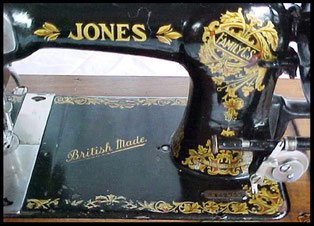

 English Made on the bed

New Bobbin Winder style

Type 5 var. 5 .......................................... # 245.882
Type 5 var. 5 .......................................... # 245.882





JONES



Type 5 var. 5



# 245.882  (1917 c.)

 "English Made"

  badged on the bed



First recorded # 122.705 (1903 c.)

Last recorded # 330.026 (1925 c.)

Type 5 var. 6 .......................................... # 254.177
Type 5 var. 6 .......................................... # 254.177





 JONES

UNNAMED



 Type 5 var. 6



# 254.177  (1918 c.)

 "English Made"

 badged on the bed









**********************  Type 6 *********************

1900 c. - 1901 c.

Type 5
Type 5
Type 6
Type 6
Type 7
Type 7

Jones FCS Type  6 ...................................... # 73.872
Jones FCS Type 6 ...................................... # 73.872

 JONES

 FAMILY CS



Type 6



# 73.872    (1900 c.)



New decal on the flat bed

Old Style Bobbin Winder



First recorded # 73.872 (1900 c.)

Last recorded # 87.839 (1901 c.)

Jones FCS Type  6 ...................................... # 79.045
Jones FCS Type 6 ...................................... # 79.045

 JONES

 FAMILY CS



Type 6



# 79.045    (1900 c.)



New decal on the flat bed

Old Style Bobbin Winder



First recorded # 73.872 (1900 c.)

Last recorded # 87.839 (1901 c.)



"Singer style" Bobbin Winder



The next machines are an early example of Jones FCS with the new style of bobbin winder

Jones FCS Type  6 ...................................... # 80.913
Jones FCS Type 6 ...................................... # 80.913

 JONES

 FAMILY CS



Type 6



# 80.913    (1900 c.)



New decal on the flat bed

Singer New Style Bobbin Winder



First recorded # 73.872 (1900 c.)

Last recorded # 87.839 (1901 c.)

Jones FCS Type  6  (treadle) ......................... # 87.839
Jones FCS Type 6 (treadle) ......................... # 87.839

 JONES

 FAMILY CS



Type 6



# 87.839    (1901 c.)



New decal on the flat bed

Singer New Style Bobbin Winder



First recorded # 73.872 (1900 c.)

Last recorded # 87.839 (1901 c.)





**********************  Type 7  **********************

1901 c. - 1925 c.

Type  6
Type 6
Type  7 ... Queen Alexandra
Type 7 ... Queen Alexandra
Type  8
Type 8

QUEEN ALEXANDRA  ( July 20, 1901 )
QUEEN ALEXANDRA ( July 20, 1901 )

  85.000 .........................................................................

  90.297 ........ Family CS Type 7  First Recorded             1901

100.000 .........................................................................



 Queen Alexandra



325.000 .........................................................................

335.764 ........ Family CS Type 7  Last Recorded             1925

342.000 .........................................................................

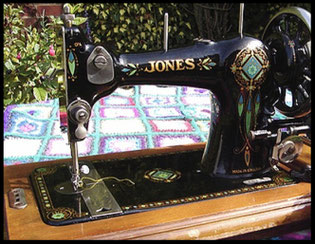

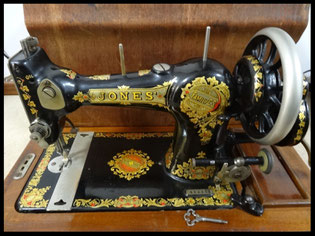

Jones FCS Type 7 .... QUEEN ALEXANDRA .... # 90.297
Jones FCS Type 7 .... QUEEN ALEXANDRA .... # 90.297



JONES

FAMILY CS

(QUEEN ALEXANDRA)



Type 7



# 90.297  (1901 c.)



 First recorded #  90.297 (1901 c.)

 Last recorded # 335.764 (1925 c.)



Jones FCS Type 7 ... QUEEN ALEXANDRA ... # 164.109
Jones FCS Type 7 ... QUEEN ALEXANDRA ... # 164.109



JONES

FAMILY CS

(QUEEN ALEXANDRA)



 Type 7



# 164.109  (1907 c.)



First recorded #  90.297 (1901 c.)

Last recorded # 335.764 (1925 c.)

Jones FCS Type 7 ... QUEEN ALEXANDRA ... # 335.764
Jones FCS Type 7 ... QUEEN ALEXANDRA ... # 335.764



JONES

 FAMILY CS

(QUEEN ALEXANDRA)



Type 7



#  335.764  (1925 c.)



First recorded #   90.297 (1901 c.)

Last  recorded # 335.764 (1925 c.)

 www.teahippo.uk





*********************  Type 8 **********************

1925 c. - 1930 c.

Type  7 ... Queen Alexandra
Type 7 ... Queen Alexandra
Type  8
Type 8
Type 9
Type 9

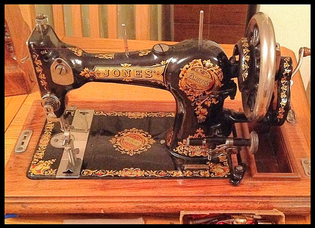

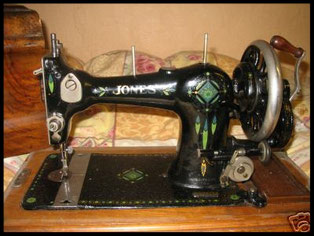

Jones CS Type 8 ...................................... # 341.290
Jones CS Type 8 ...................................... # 341.290



JONES

FAMILY CS



Type 8



# 341.290  (1925 c.)



First recorded # 339.740 (1925 c.)

 Last recorded # 413.146 (1930 c.)



# 341.636 ........ JONES MANUAL ....... 1926 circa



JONES # 343240
Jones CS Type 8 ...................................... # 343.240





 JONES

 FAMILY CS



Type 8



# 343.240  (1926 c.)



First recorded # 339.740 (1925 c.)

 Last recorded # 413.146 (1930 c.)





Jones CS Type 8 ...................................... # 365.103
Jones CS Type 8 ...................................... # 365.103



JONES

 FAMILY CS



Type 8





# 365.103  (1927 c.)



First recorded # 339.740 (1925 c.)

 Last recorded # 413.146 (1930 c.)

Jones CS Type 8 ...................................... # 412.253
Jones CS Type 8 ...................................... # 412.253





JONES

FAMILY CS



Type 8



# 412.253  (1930 c.)



First recorded # 339.740 (1925 c.)

Last recorded # 413.146 (1930 c.)





**********************  Type 9 **********************

1926 c. - 1936 c.

Type  8
Type 8
Type 9
Type 9
Type 10
Type 10

Jones CS Type 9 .........  "tear drop" ........... # 353.722
Jones CS Type 9 ......... "tear drop" ........... # 353.722





JONES

 The Turquoise



Type 9



# 353.722  (1926 c.)

 It has turquoise "tear drop" decals



First recorded # 353.722 (1926 c.)

Last recorded # 500.431 (1935 c.)

Turquoise is an opaque, blue-to-green mineral that has been prized as a gem and ornamental stone for thousands of years owing to its unique hue. This gemstone has been esteemed for thousands of years as a holy stone, a bringer of good fortune or a talisman.

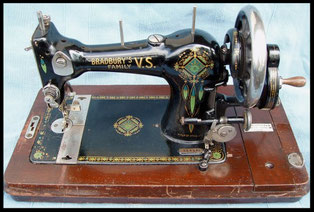

Jones .. Bradbury labelled..www.sewmuse .. # 356.461
Jones .. Bradbury labelled..www.sewmuse .. # 356.461





JONES

 "BRADBURY VS"



Labelled



# 356.461  (1927 c.)



source:

www.sewmuse.co.uk







The above JONES sewing machine labelled BRADBURY'S VS, was probably made in 1927 c.. click here





Jones CS Type 9 .........  "tear drop" ........... # 404.497
Jones CS Type 9 ......... "tear drop" ........... # 404.497





JONES

 The Turquoise



Type 9



# 404.497  (1929 c.)

 It has turquoise "tear drop" decals



First recorded # 353.722 (1926 c.)

Last recorded # 500.431 (1935 c.)

Jones CS Type 9 .........  "tear drop" ........... # 500.431
Jones CS Type 9 ......... "tear drop" ........... # 500.431



JONES

 The Turquoise



Type 9



# 500.431  (1934 c.)

 It has turquoise "tear drop" decals



First recorded # 353.722 (1926 c.)

Last recorded # 500.431 (1935 c.)

Jones CS Type 9 .........  "tear drop" ........... # 500.431
Jones CS Type 9 ......... "tear drop" ........... # 500.431



JONES

 The Turquoise



Type 9



# 500.431 or # 500.451?

(1935 c.)

It has turquoise "tear drop" decals



First recorded # 353.722 (1926 c.)

Last recorded # 500.431 (1935 c.)

Jones FCS Type 9 ... www.sewmuse.co.uk .. # 522.569
Jones FCS Type 9 ... www.sewmuse.co.uk .. # 522.569





JONES

The Turquoise Unnamed



Type 9 var. 1



# 522.569  (1936 c.)





*********************  Type 10 *********************

1930 c.

Type 9
Type 9
Type 10
Type 10
Type 11
Type 11

Jones FCS Type 10 .................................. # 414.116
Jones FCS Type 10 .................................. # 414.116



JONES

FAMILY CS



Type 10

(Black Diagonal 1)



# 414.116  (1930 c.)



 First recorded # 414.116(1930 c.)

 Last recorded # 427.394(1930 c.)





Jones FCS Type 10 .................................. # 426.893
Jones FCS Type 10 .................................. # 426.893



JONES

FAMILY CS



Type 10

(Black Diagonal 1)



# 426.893  (1930 c.)



 First recorded # 414.116(1930 c.)

 Last recorded # 427.394(1930 c.)







*********************  Type 11 ********************

1930 c. - 1936 c.

Type 10
Type 10
Type 11
Type 11
Type 12
Type 12

Jones FCS Type 11 .................................. # 465.879
Jones FCS Type 11 .................................. # 465.879



 JONES

FAMILY CS



Type 11

(Black Diagonal 2)



# 465.879  (1933 c.)



 First recorded # 429.104 (1930 c.)

 Last recorded # 519.689 (1936 c.)







The Great Depression of 1929–32 broke out at a time when the United Kingdom was still far from having recovered from the effects of the First World War. Economist Lee Ohanian showed that economic output fell by 25% between 1918 and 1921 and did not recover until the end of the Great Depression, arguing that the United Kingdom suffered a twenty-year great depression beginning in 1918. Relative to the rest of the world, economic output declined mildly in the UK between 1929 and 1934.

Wikipedia

Jones FCS Type 11 .................................. # 519.689
Jones FCS Type 11 .................................. # 519.689



JONES

FAMILY CS



Type 11

(Black Diagonal 2)



# 519.689  (1936 c.)



 First recorded # 429.104 (1930 c.)

 Last recorded # 519.689 (1936 c.)





*********************  Type 12 ********************

Jones Family CS Type 12 are all those sewing machines with the serial number  preceded by the letter "B or C", included Jones labelled machines.



First recorded # B 528.319 (1936 c.)

 # B 627.065 (1941 c.)

Last recorded # C 670.308

Jones FCS Type 12 .... CWS FEDERATION ....# 528.319
Jones FCS Type 12 .... CWS FEDERATION ....# 528.319







"FAMILY CS"

 CWS FEDERATION



Type 12



# B 528.319  (1936 c.)

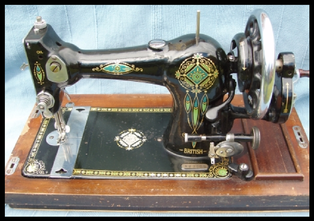

Jones FCS Type 12 ...... British Made ...... # B 542.767
Jones FCS Type 12 ...... British Made ...... # B 542.767







JONES

FAMILY CS



"British Made"



Type 12



# B 542.767  (1937 c.)

Jones FCS Type 12 ............................... # B 592.588
Jones FCS Type 12 ............................... # B 592.588







JONES

FAMILY CS



Type 12



# B 592.588  (1939 c.)



JONES

CWS FEDERATION

Type 12

# B 627.065  (1941 c.)

Jones FCS Type 12 (Labelled) ... CWS  FEDERATION ... # B 627.065
Jones FCS Type 12 (Labelled) ... CWS FEDERATION ... # B 627.065





*********************************************************

Were the machines below, made after WWII ?

*********************************************************



Jones Family CS sewing machine, had the serial number located on the top right hand side of the bed until 1953 circa.

see also Jones CB machines

Jones FCS # C-657.395
Jones FCS # C-657.395
NeedleBar ................................ #  C 670.308
NeedleBar ................................ # C 670.308



*********************************************************



*********************************************************



QUICK  DATING

 JONES FAMILY CS



0.000...........................

     144 . Family CS Type 1 First Recorded

     595 . Family CS Type 2 First Recorded

    +3.000              1893

 2.587 . Family CS Type 1 Last Recorded

3.000............................

    +7.000              1894

   6.818 . Family CS Type 2 Last Recorded

10.000..........................

10.001 . Family CS Type 3 First Recorded

   +10.000             1895

15.870 . Family CS Type 3 Last Recorded

16.780 . Family CS Type 4 First Recorded

20.000..........................

   +10.000             1896

30.000...........................

   +10.000              1897

40.000...........................

   +15.000              1898

55.000...........................

   +15.000              1899

64.466 . Family CS Type 4 Last Recorded

70.000...........................

73.872. Family CS Type 6 First Recorded

   +15.000              1900

85.000...........................

87.839 . Family CS Type 6 Last Recorded



QUEEN ALEXANDRA (from July 20, 1901)

   90.297 . Family CS Type 7 First Recorded

   +15.000              1901

100.000.........................

   +15.000              1902

                QUEEN ALEXANDRA  (Coronation in August 1902)

115.000...........................

   +10.000              1903

125.000.........................

   +10.000              1904

135.000.........................

   +10.000              1905

145.000.........................

   +10.000              1906

155.000.........................

   +10.000              1907

165.000.........................

   +10.000              1908

175.000.........................

   +10.000              1909

185.000.........................

   +10.000              1910

195.000.........................

   +10.000              1911

205.000.........................

   +10.000              1912

215.000.........................

   +10.000              1913

225.000.........................

   +10.000               1914

235.000.........................

    +5.000               1915

240.000.........................

    +5.000               1916

245.000.........................

    +5.000               1917

250.000.........................

   +5.000                1918

255.000.........................

    +5.000               1919

260.000.........................

   +10.000              1920

270.000.........................

   +10.000              1921

280.000.........................

   +15.000              1922

295.000.........................

   +15.000              1923

310.000.........................

   +15.000              1924

325.000.........................

   +20.000              1925

                       QUEEN ALEXANDRA  (Death in November 1925)

335.764 . Family CS Type 7 Last Recorded

339.740 . Family CS Type 8 First Recorded

345.000.........................

Medium CS Type 8    Bill of Sale 1926

   +20.000              1926

353.722 . Family CS Type 9 First Recorded

365.000.........................

   +15.000              1927

377.468        Directions for Operating (11/26)

380.000.........................

   +15.000              1928

395.000..........................

   +15.000              1929

410.000..........................

Medium CS Type 8    Bill of Sale 1930

413.146 . Family CS Type 8 Last Recorded

414.116 . Family CS Type 10 First Recorded

   +20.000              1930

420.742            Directions for Operating 1929

427.374 . Family CS Type 10 Last Recorded

429.104 . Family CS Type 11 First Recorded

430.000..........................

432.806       Family CS Type 11  Bill of Sale 1933

   + 15.000              1931

445.000..........................

   +15.000              1932

460.000..........................

   +15.000              1933

475.000..........................

   +15.000              1934

486.218           Directions for Operating 1933

490.000..........................

500.431 . Family CS Type 9 Last Recorded

   +25.000              1935

514.594           Directions for Operating 1934

515.000..........................

   +20.000              1936

519.689 . Family CS Type 11 Last Recorded

B 525.000 c. The letter "B" was add to the serial number

B 528.319 . Family CS Type 12 First Recorded

535.000.............................

   +20.000              1937

B 555.000..........................

   +20.000              1938

B 575.000..........................

   +20.000              1939

B 595.000..........................

   +20.000              1940

B 615.000..........................

B 622.510 ... Family CS Type 12

   +15.000              1941



B 630.000..........................



                                          C 670.308   Family CS Type 12  Last Recorded

C 670.308.....................



???   1941-45 WWII   ???







In 1890

about 23.000 machines could be turn out.  (460 machines in a week)

Jones Hand ...........................................................  8.000

Jones Family & Medium TS ......................... working on it

Jones Family CS .....................................................   N/A

Jones Medium CS ....................................................  N/A

Jones Spool & Medium Spool ..................... working on it

 Jones others machines .....................,,,....... working on it

                                        estimated figures     Total ............. 20.000 about



In 1895

Jones Hand ..........................................................  8.000

Jones Family & Medium TS ......................... working on it

Jones Family CS ................................................... 10.000

Jones Medium CS ....................................................  N/A

Jones Spool & Medium Spool ...................... working on it

 Jones others machines .....................,,,....... working on it

                                        estimated figures     Total ............. 20.000 about
