DATING & IDENTIFYING

JONES FAMILY CS

CYLINDER SHUTTLE

or

VIBRATING SHUTTLE



PART 2

from 1941 forward

This page is far from complete but I hope it can help you a bit and not confuse you !



*********************************************************

Were the machines below, made after WWII ?

*********************************************************



Jones Family CS sewing machine, had the serial number located on the top right hand side of the bed until 1953 circa.

see also Jones CB machines

Jones FCS # C 657.395  Type 3
Jones FCS # C 657.395 Type 3
NeedleBar ................................ #  C 670.308
NeedleBar ................................ # C 670.308



*********************************************************

JONES  NEW  FAMILY (Type 1) with serial number on to
JONES NEW FAMILY (Type 1) with serial number on to
JONES  NEW  FAMILY (Type 1 var. 1) with serial number under (possibly)
JONES NEW FAMILY (Type 1 var. 1) with serial number under (possibly)
Type 1
Type 1
Type 2
Type 2



*********************************************************

Jones ....................... No. 35 ................... # J 6.977
Jones ....................... No. 35 ................... # J 6.977



POST WAR





JONES

 "No. 35"



# J 6.977









This machine has a different body shape but still have the serial number on top of the bed. Bed decal similar to the Jones CB machinesThis kind of decal was used until 1958 c.



USA
USA



Jones  No 35  J     3.017

Jones  No 35  J     8.749

Jones  No 35  M  16.133

Jones  No 35  M  19.390




*********************************************************





1953


The Family D.53 Machine. A piece of first-class engineering, sturdily built to give a lifetime of trouble-free service and tackle every type of family sewing with ease. Hand and electric models in black, green, or grey fitted into a compact, good-looking portable base and cover, modern design occasional table, or a selection of craftsman designed cabinets.



SPECIAL FEATURES OF THE NEW "JONES"

Automatic Bobbin Winder

Reverse Feed with Stitch Indicator

Automatic Tension Release

Flat Shank Self-Setting Needle

Check Tension Spring

Easy Flow Presser Foot

Shuttle Ejector

Square Streamlined Arm

Solid Balance Wheel

Thread Cutter

Bright Parts Chromium Plated



Type 1
Type 1
Type 2
Type 2
Type 3
Type 3

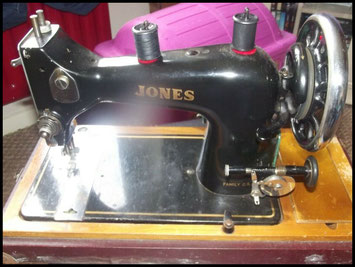

D 53 Type 1
D 53 Type 1
D 53 Type 1 # SA 1.497
D 53 Type 1 # SA 1.497

Jones CS .......... D 53 Type 1 ......... # SA 1.497
Jones CS .......... D 53 Type 1 ......... # SA 1.497



JONES

D 53



Type 1

Black

# SA 1.497 (1953 c.)



still have the serial number on top right hand side of the bed

Jones CS ............................. D 53 Type 1 var. 1
Jones CS ............................. D 53 Type 1 var. 1





JONES

D 53



Type 1 var. 1

Black



Serial number probably underneath

Jones CS ......... NeedleBar ..... D 53 Type 1 var. 1
Jones CS ......... NeedleBar ..... D 53 Type 1 var. 1







JONES

FAMILY D 53



Type 1 var. 1

Black



Serial number probably underneath

Jones CS ............................. D 53 Type 1 var. 1
Jones CS ............................. D 53 Type 1 var. 1





JONES

FAMILY D 53



Type 1 var. 1

Black



Serial number probably underneath

Jones CS ............... Green   .... D 53 Type 1 var. 1
Jones CS ............... Green .... D 53 Type 1 var. 1





JONES

FAMILY D 53



Type 1 var. 1

Green



Serial number probably underneath

This version it was made with a black japanned balance wheel and a different Upper Thread Tension Dial. The machine bed decal follows the same logic used for the Jones CS model D.53. Probably this version too was made in different colours.

Jones CS ................................... D 53A Type 1
Jones CS ................................... D 53A Type 1





JONES

FAMILY  D 53A



Type 1

Black



Serial number probably underneath

Jones CS ................................... D 53A Type 3
Jones CS ................................... D 53A Type 3



JONES

FAMILY  D 53A



Type 3

Black

Serial number probably underneath



*********************************************************



JONES Family CS Mod. E ................. 1950's ?

The Elna was green in color, breaking away from the traditional black, an innovation in itself for the time. The machine was a resounding success and so began Elna's commitment to the home sewing industry. The green Elna 1, also known under the nickname "Grasshopper", was produced until 1952.

see:  SWISS Machines

Jones  Mod.  E
Jones Mod. E



*********************************************************



JONES TOYS SEWING MACHINES



POPULAR

JONES TOY SEWING MACHINE - Mod. POPULAR
JONES TOY SEWING MACHINE - Mod. POPULAR
JONES TOY SEWING MACHINE - Mod. POPULAR DE-LUXE
JONES TOY SEWING MACHINE - Mod. POPULAR DE-LUXE



*********************************************************



JONES   MOD. D59 .........................  1959

Jones CS ............. NeedleBar ................... D 59
Jones CS ............. NeedleBar ................... D 59













JONES  D 59







*********************************************************



JONES   MOD. D63 .........................  1963

NeedleBar ......... "JONES CONSORT" ..........  D 63
NeedleBar ......... "JONES CONSORT" .......... D 63





JONES D 63



CONSORT





Electric Sewing Machine

NeedleBar ............... CONSORT ................  D 63
NeedleBar ............... CONSORT ................ D 63











 JONES



CONSORT



Electric Sewing Machine

JONES ....... CONSORT ...... DE- LUXE ....... (D63)
JONES ....... CONSORT ...... DE- LUXE ....... (D63)











JONES



CONSORT

DE-LUXE

(D63)



Electric Sewing Machine



*********************************************************



JONES  D64 .......................... 1964

JONES ................................................ MODEL  D 64
JONES ................................................ MODEL D 64







 JONES

MODEL  D 64



Electric Sewing Machine



*********************************************************



*********************************************************
