DATING & IDENTIFYING

JONES MEDIUM  CS

 Vibrating Shuttle

The Jones Medium Cylinder Shuttle was a larger version of the Family C.S designed for use by seamstresses and tailors. There is very little information on this model but from information gleaned from serial numbers we know approximately 180.000 of these machines were made and that production ceased shortly after the start of WWII.

www.sewmuse.co.uk

Jones may have started production of the Medium CS model at the same time as the Family CS model, or production could have started later, however there are no Medium CS records with the typical medallion in the center of the machine bed. To facilitate their dating I will use the same Type No. used for Jones Family CS. This Type No. could later be changed based on new information.

Jones Medium CS sewing machines, were commonly produced as treadle machines.

TYPE 4

TYPE 6

TYPE 7

July  1901

By Special Appointment  to  H.M.  Queen Alexandra

TYPE 8

TYPE 10

Jones Family Type 10 "Black Diagonal 1" were produced in 1930 circa.

*********************************************************

The "Tear Drop" decals of this machines corresponding to Type 9 of the "Jones Family CS", were produced between 1926 and 1936 circa.

JONES sewing machines, labelled BRADBURY, were made after 1925.

click here

*********************************************************

 TYPE 11

The "Black Diagonal 2" decals of these machines corresponding to Type 11 of the "Jones Family CS", were produced between 1930 c. and 1936 c..

JONES MEDIUM CS

Machine

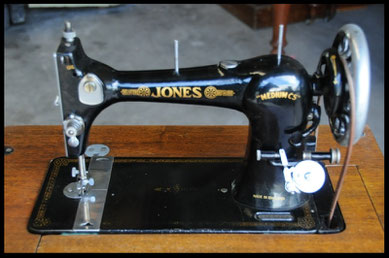

Bed decal similar to the Jones CS No.35 and Jones CB machines. This kind of decal was used until 1958 c.. The serial number located on top right hand side. The shape of the body is unchanged. Not having available the serial number, I am not sure if this machine was an old one only re-painted or if  it was still manufacturing.

by  ISMACS International

The Jones Sewing Machine Company

DIRECTIONS FOR OPERATING JONES CYLINDER SHUTTLE

QUICK  DATING

 JONES MEDIUM CS

     000 ................................................

                                                       1893 ?

  1.000  ................................................

1894

  3.000  ................................................

1895

  5.000  ................................................

1896

  9.000 .................................................

  9.683  Medium CS Type 4 (Flowers Decal)

                                                        1897

13.000 .................................................

1898

17.000 .................................................

                                                       1899

Family CS Type 4 Last Recorded

19.189  Medium CS Type 6  (Victorian Decal)

21.000 .................................................

Family CS Type 6 First Recorded

1900

25.000 .................................................

Family CS Type 6 Last Recorded

26.647  Medium CS Type 6  (Victorian Decal)

                     July 20, 1901  (Queen Alexandra)

29.773 First recorded  Medium CS Type 7 (Queen Alexandra)

30.000 .................................................

1902

35.000 .................................................

1905

40.000 .................................................

1904

35.000 .................................................

1905

40.000 .................................................

1906

45.000 .................................................

1907

50.000 .................................................

1908

55.000 .................................................

1909

60.000 .................................................

1910

65.000 .................................................

1911

70.000 .................................................

1912

75.000 .................................................

                                                        1913

80.000 .................................................

81.074  Medium CS Type 7 (Queen Alexandra)   Bill of Sale April 1914*

                                                        1914

85.000 .................................................

1915

90.000 .................................................

1916

95.000 .................................................

                                                        1917

97.449  Medium CS Type 7 (Queen Alexandra)  Bill of Sale  1917*

98.000 ...............................................

1918

101.000 ...............................................

1919

104.000 ...............................................

1920

107.000 ...............................................

1921

110.000 ...............................................

1922

113.000 ...............................................

1923

116.000 ...............................................

1924

119.000 ...............................................

1925

                Last recorded Family CS Type 7 (Queen Alexandra)

121.640  Last recorded Medium CS Type 7 (Queen Alexandra)

                First Recorded Family CS Type 8 (Victorian Decal)

123.000 ...............................................

124.169 First recorded Medium CS Type 8 (bill of sale 1926)*

        1926

129.000 ...............................................

1927

136.000 ...............................................

1928

143.000 ...............................................

1929

150.000 ...............................................

150.303  Medium CS Type 8 (Victorian Decal)  Bill of Sale  June 1930

157.170  Last recorded Medium CS Type 8 (Victorian Decal)

Last Recorded Family CS Type 8 (Victorian Decal)

First Recorded Family CS Type 10 (Black Diagonal 1)

1930

158.000 ...............................................

1931

Last Recorded Family CS Type 10 (Black Diagonal 1)

First Recorded Family CS Type 11 (Black Diagonal 2)

160.530 Medium CS Type 10 (Black Diagonal 1)

162.840 Medium CS Type 11 (Black Diagonal 2)

165.000 ...............................................

1932

169.830 Medium CS Type 11 (Black Diagonal 2)

170.622 Medium CS Type 11 (Black Diagonal 2)

171.349 Medium CS Type 11 (Black Diagonal 2)

172.000 ...............................................

173.508 Medium CS Type 11 (Black Diagonal 2)

1933

175.000 ...............................................

1934

180.000 ...............................................

1935

    Last Recorded Family CS Type 11 (Black Diagonal 2)

185.000 ...............................................

NOTES:

* BILL OF SALE. This does not mean that the sewing machine was made in that year, but it will give us a better idea of how to date that specific serial number

*********************************************************

In 1890

about 23.000 machines could be turn out.  (460 machines in a week)

Jones Hand ...........................................................  8.000

Jones Family & Medium TS ......................... working on it

Jones Family CS .....................................................   N/A

Jones Medium CS ....................................................  N/A

Jones Spool & Medium Spool ..................... working on it

 Jones others machines .....................,,,....... working on it

                                        estimated figures     Total ............. 20.000 about

In 1895

Jones Hand ..........................................................  8.000

Jones Family & Medium TS ......................... working on it

Jones Family CS ................................................... 10.000

Jones Medium CS ....................................................  N/A

Jones Spool & Medium Spool ...................... working on it

 Jones others machines .....................,,,....... working on it

                                        estimated figures     Total ............. 20.000 about
